Questions: Question 1 A single phase transformer supplies a load through a short feeder. The transformer is connected to a voltage source. The system data are: Transformer Rating = 160 kVA Rated Primary Voltage = 3 kV Rated Secondary Voltage = 380 V Leakage Resistance Primary = 0.50 ohm Leakage Reactance Primary = 2.5 ohm Leakage Resistance Secondary = 0.01 ohm Leakage Reactance Secondary = 0.05 ohm Magnetizing Resistance = 6.2 kohm Magnetizing Reactance = 3 kohm Load Voltage = 375 V Load Power = 64 kW Load Power Factor = 0.85 (lagging) Feeder Impedance = (0.2 + j 0.58) ohm / mi Feeder Length = 8 mi Frequency = 60 Hz a. Calculate the load current. b. Calculate the transformer secondary and primary voltage and current. c. Calculate the transformer magnetizing current and network supply current and voltage. d. Determine the voltage regulation. Is it acceptable? Hint: Place the feeder on the primary side of the transformer.

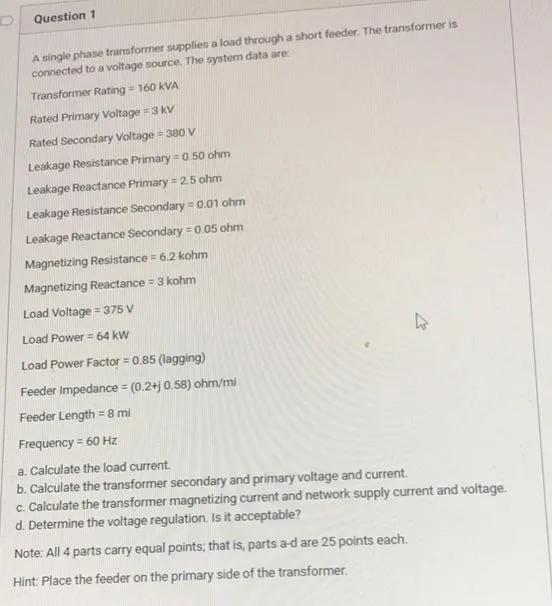

Question 1
A single phase transformer supplies a load through a short feeder. The transformer is connected to a voltage source. The system data are:

Transformer Rating = 160 kVA
Rated Primary Voltage = 3 kV
Rated Secondary Voltage = 380 V
Leakage Resistance Primary = 0.50 ohm
Leakage Reactance Primary = 2.5 ohm
Leakage Resistance Secondary = 0.01 ohm
Leakage Reactance Secondary = 0.05 ohm
Magnetizing Resistance = 6.2 kohm
Magnetizing Reactance = 3 kohm
Load Voltage = 375 V
Load Power = 64 kW
Load Power Factor = 0.85 (lagging)
Feeder Impedance = (0.2 + j 0.58) ohm / mi
Feeder Length = 8 mi
Frequency = 60 Hz

a. Calculate the load current.
b. Calculate the transformer secondary and primary voltage and current.
c. Calculate the transformer magnetizing current and network supply current and voltage.
d. Determine the voltage regulation. Is it acceptable?

Hint: Place the feeder on the primary side of the transformer.
Transcript text: Question 1 A single phase transformer supplies a load through a short feeder. The transformer is connected to a voltage source. The system data are: Transformer Rating $=160 \mathrm{kVA}$ Rated Primary Voltage $=3 \mathrm{kV}$ Rated Secondary Voltage $=380 \mathrm{~V}$ Leakage Resistance Primary $=0.50 \mathrm{ohm}$ Leakage Reactance Primary $=2.5 \mathrm{ohm}$ Leakage Resistance Secondary $=0.01 \mathrm{ohm}$ Leakage Reactance Secondary $=0.05 \mathrm{ohm}$ Magnetizing Resistance $=6.2 \mathrm{kohm}$ Magnetizing Reactance $=3 \mathrm{kohm}$ Load Voltage $=375 \mathrm{~V}$ Load Power $=64 \mathrm{~kW}$ Load Power Factor $=0.85$ (lagging) Feeder Impedance $=(0.2+j 0.58) \mathrm{ohm} / \mathrm{mi}$ Feeder Length $=8 \mathrm{mi}$ Frequency $=60 \mathrm{~Hz}$ a. Calculate the load current. b. Calculate the transformer secondary and primary voltage and current. c. Calculate the transformer magnetizing current and network supply current and voltage. d. Determine the voltage regulation. Is it acceptable? Hint: Place the feeder on the primary side of the transformer.
failed

Solution

failed
failed
Transformer Analysis

Calculate the load current.

Determine the load apparent power

Given:

  • Load voltage = 375 V
  • Load power = 64 kW
  • Load power factor = 0.85 (lagging)

The apparent power can be calculated as: S = P / cos(φ) = 64 kW / 0.85 = 75.29 kVA

Calculate the load current

I_load = S / V = 75.29 × 10³ VA / 375 V = 200.78 A

The load current is 200.78 A at a power factor of 0.85 lagging.

\(\boxed{I_{load} = 200.78 \text{ A at PF } = 0.85 \text{ lagging}}\)

Calculate the transformer secondary and primary voltage and current.

Calculate the transformer secondary current

The transformer secondary current is equal to the load current: I_secondary = I_load = 200.78 A

Calculate the transformer secondary voltage

The secondary voltage at the transformer terminals will be higher than the load voltage due to the voltage drop in the feeder.

However, since the hint states to place the feeder on the primary side of the transformer, the secondary voltage of the transformer is equal to the load voltage: V_secondary = V_load = 375 V

Calculate the transformer primary current

The transformer turns ratio is: n = V_primary / V_secondary = 3000 V / 380 V = 7.895

The primary current (neglecting magnetizing current for now) is: I_primary = I_secondary / n = 200.78 A / 7.895 = 25.43 A

Calculate the transformer primary voltage

Since the feeder is on the primary side, the primary voltage at the transformer terminals will be lower than the supply voltage due to voltage drop in the feeder. We'll calculate the exact primary voltage in part c when we determine the supply voltage.

For now, the nominal primary voltage is 3 kV.

\(\boxed{\begin{array}{l} V_{secondary} = 375 \text{ V} \\ I_{secondary} = 200.78 \text{ A} \\ V_{primary} = 3000 \text{ V (nominal)} \\ I_{primary} \approx 25.43 \text{ A (excluding magnetizing current)} \end{array}}\)

Calculate the transformer magnetizing current and network supply current and voltage.

Calculate the magnetizing current

The magnetizing current has two components:

  • Current through magnetizing resistance (R_m = 6.2 kΩ)
  • Current through magnetizing reactance (X_m = 3 kΩ)

At primary voltage of 3 kV: I_R = V_primary / R_m = 3000 V / 6200 Ω = 0.484 A (in phase with voltage) I_X = V_primary / X_m = 3000 V / 3000 Ω = 1 A (90° leading the voltage)

The magnetizing current magnitude is: I_mag = √(I_R² + I_X²) = √(0.484² + 1²) = 1.11 A

The angle is: θ = tan⁻¹(I_X/I_R) = tan⁻¹(1/0.484) = 64.2°

So the magnetizing current is 1.11 A at 64.2° leading.

Calculate the total primary current

The total primary current is the phasor sum of the load current referred to the primary and the magnetizing current.

The load current referred to the primary is 25.43 A at power factor 0.85 lagging, which means an angle of -31.79° (cos⁻¹(0.85) = 31.79°).

Converting to rectangular form:

  • Load current (primary): 25.43∠-31.79° = 21.62 - j13.4 A
  • Magnetizing current: 1.11∠64.2° = 0.484 + j1 A

Total primary current: I_primary_total = (21.62 - j13.4) + (0.484 + j1) = 22.1 - j12.4 A

In polar form: I_primary_total = √(22.1² + 12.4²)∠tan⁻¹(-12.4/22.1) = 25.35∠-29.3° A

Calculate the voltage drop in the feeder

Feeder impedance = (0.2 + j0.58) Ω/mi × 8 mi = 1.6 + j4.64 Ω

Voltage drop in feeder: ΔV = I_primary_total × Z_feeder = 25.35∠-29.3° × (1.6 + j4.64) = 25.35∠-29.3° × 4.91∠71° = 124.5∠41.7° V

Calculate the supply voltage

The supply voltage is the sum of the transformer primary voltage and the feeder voltage drop: V_supply = V_primary + ΔV = 3000∠0° + 124.5∠41.7° V

Converting the voltage drop to rectangular form: ΔV = 124.5∠41.7° = 93.1 + j82.9 V

Therefore: V_supply = 3000 + 93.1 + j82.9 = 3093.1 + j82.9 V

In polar form: V_supply = √(3093.1² + 82.9²)∠tan⁻¹(82.9/3093.1) = 3094.1∠1.53° V

\(\boxed{\begin{array}{l} I_{magnetizing} = 1.11 \text{ A at } 64.2° \text{ leading} \\ I_{primary\_total} = 25.35 \text{ A at PF } = 0.87 \text{ lagging} \\ V_{supply} = 3094.1 \text{ V} \end{array}}\)

Determine the voltage regulation. Is it acceptable?

Calculate the voltage regulation

Voltage regulation is defined as: VR = (V_no_load - V_full_load) / V_full_load × 100%

For the transformer:

  • V_no_load (secondary) = 380 V (rated secondary voltage)
  • V_full_load (secondary) = 375 V (load voltage)

Voltage regulation = (380 - 375) / 375 × 100% = 1.33%

Evaluate if the voltage regulation is acceptable

For power distribution transformers, a voltage regulation of 1-3% is typically considered acceptable. The calculated voltage regulation of 1.33% falls within this range, indicating good performance.

The voltage regulation is low enough to ensure that voltage variations between no-load and full-load conditions are minimal, which is desirable for stable operation of connected equipment.

\(\boxed{\text{Voltage regulation} = 1.33\% \text{, which is acceptable}}\)

Load current = 200.78 A at power factor 0.85 lagging

Transformer secondary voltage = 375 V Transformer secondary current = 200.78 A Transformer primary voltage = 3000 V (nominal) Transformer primary current ≈ 25.43 A (excluding magnetizing current)

Magnetizing current = 1.11 A at 64.2° leading Total primary current = 25.35 A at power factor 0.87 lagging Supply voltage = 3094.1 V

Voltage regulation = 1.33%, which is acceptable
